Metric Tube Fittings 24°
SKU: MAS-CAT-15 · Catalogue Item: 15

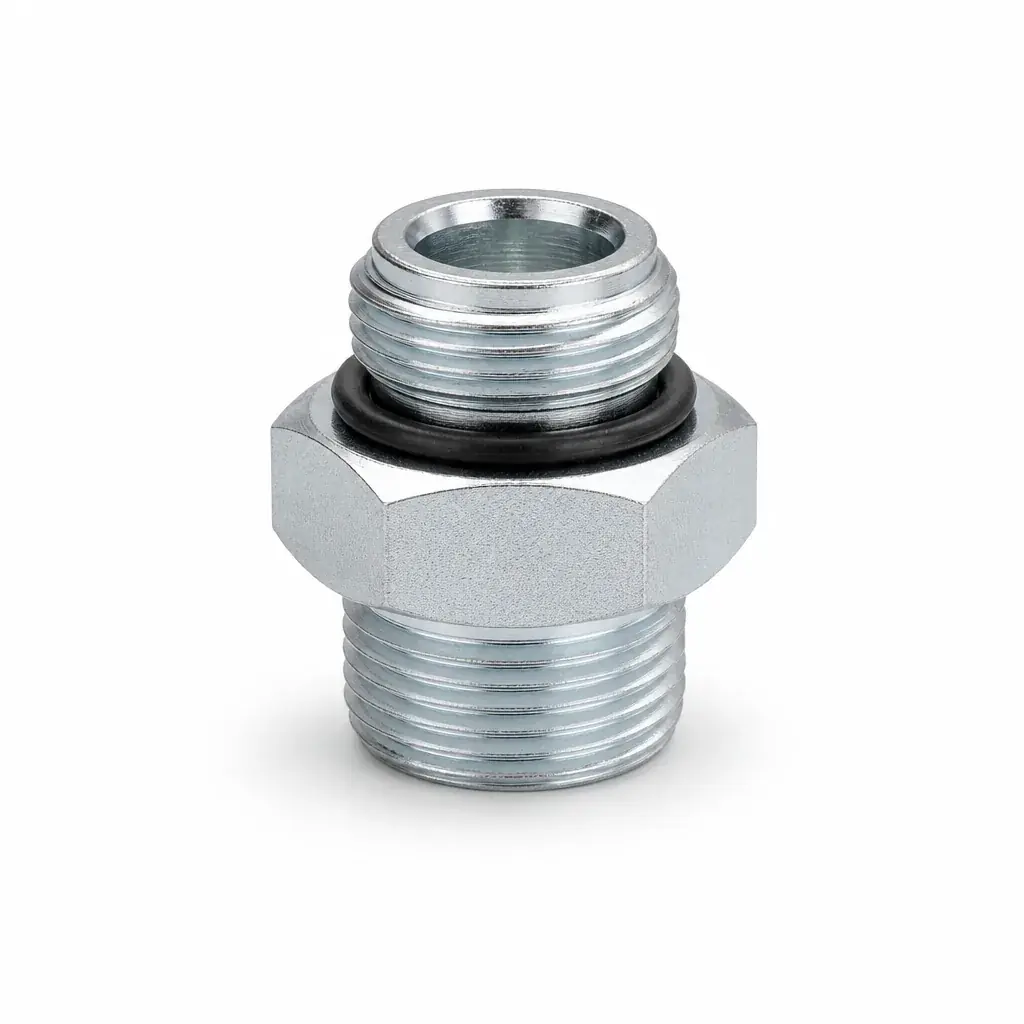

Masofit Pressure Gauge Connector BSPP Parallel — precision hydraulic fitting from the official Masofit catalogue (item 15).
Masofit Pressure Gauge Connector BSPP Parallel — precision hydraulic fitting from the official Masofit catalogue (item 15).

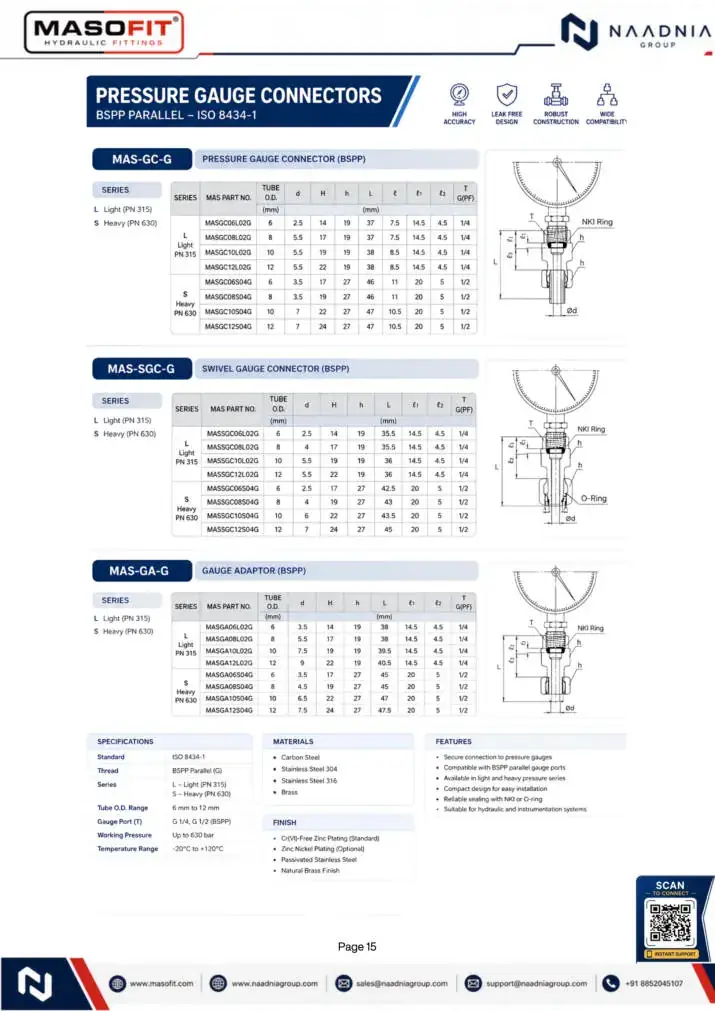

See dimensions, part numbers, pressure ratings, and material options in the Masofit Hydraulic Fittings Catalogue (page 15).
Technical diagram for Pressure Gauge Connector BSPP Parallel — Male stud connector. Click a numbered hotspot to explore thread, body, seal, material, size, and standards.
Key hydraulic fitting parameters used in this product and why they matter.
Material choice determines corrosion resistance, pressure capability, and service life in hydraulic systems.
Fitting size must match tube/hose OD and system flow demand. Undersizing causes pressure drop; oversizing adds cost and weight.
Imperial sizes (1/4", 3/8", 1/2") are common in hydraulic lines. Metric sizes (mm) are typical for pneumatic tubing. Always confirm thread and tube standards together.
Industry standards ensure interchangeability, sealing performance, and safety across hydraulic fittings.
Connection geometry defines how fluid is routed — straight, angled, branched, or quick-connect.
| Catalogue Item | 15 |
|---|---|
| Material | Carbon Steel / SS304 / SS316 / Brass |
| Surface Finish | Cr(VI)-free zinc plating (standard) |
| Standard | ISO 8434-1 · DIN 2353 · 24° metric tube |
| Pressure Series | LL / L / S |
